Setrab Series 9 Oil Coolers - Click to Select Configuration

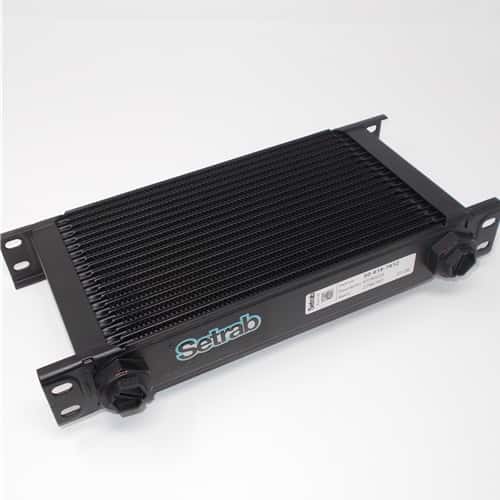

Setrab Series 9 - 10 Row Oil Cooler
Part #:HX.0910.M22
Availability:In Stock
Price each: $159.99
Setrab Pro-Line STD range oil coolers are the most flexible high-performance oil coolers on the market. The stacked-plate style of Setrab's STD range offers the advantage of many height possibilities within the various series' widths. In addition, state-of-the-art brazing technology makes for a durable and highly-efficient design. The Pro-Line STD series integrates low-profile 22mm female ports for adaptability to any system using Pro-Line adapter fittings.
Use this chart to select the proper cooler for your needs (click line drawing for larger image):
9-series Setrab ProLine STD Oil Coolers | ||||||||||
HP range | Part Number | A | B | C | D | E | Vol. (qt.) | Wt. (lb.) | ∆P (psi) | btu/hr range |
170-200 | 50-910-7612 | 14.09 | 2.99 | 12.48 | 15.16 | 15.94 | 0.25 | 1.95 | 6.1/na | 19,000-27,000 |
220-310 | 50-915-7612 | 14.09 | 4.53 | 12.48 | 15.16 | 15.94 | 0.40 | 2.75 | 4.5/5.2 | 27,000-39,000 |
300-400 | 50-920-7612 | 14.09 | 6.06 | 12.48 | 15.16 | 15.94 | 0.55 | 3.55 | 3.0/4.2 | 35,000-50,000 |
400-475 | 50-925-7612 | 14.09 | 7.60 | 12.48 | 15.16 | 15.94 | 0.75 | 4.35 | 2.6/3.5 | 42,000-60,000 |
450-550 | 50-934-7612 | 14.09 | 10.39 | 12.48 | 15.16 | 15.94 | 1.00 | 5.85 | 2.3/3.3 | 53,100-72,100 |
600+ | 50-948-7612 | 14.09 | 14.7 | 12.48 | 15.16 | 15.94 | 1.43 | 8.00 | 1.8/3.1 | 69,000-96,000 |
